Single-cell transcriptomic analysis deciphers the inflammatory microenvironment characterized by CXCL9+ fibroblasts and ACKR1+ endothelial cells in immune-related myocarditis

Journal of Translational Medicine volume 23, Article number: 555 (2025) Cite this article

Abstract

Background

Immune-related myocarditis induced by immune checkpoint inhibitors (ICIs) is a rare immune-related adverse event (irAE) but is characterized by a high mortality rate. However, the specific pathological mechanisms underlying immune-related myocarditis remain largely unclear. In this study, we aimed to elucidate the inflammatory microenvironment within cardiac tissues affected by immune-related myocarditis at the single-cell level to identify potential therapeutic targets.

Methods

We performed single-cell RNA sequencing (scRNA-seq) on an endomyocardial biopsy specimen obtained from a patient with pancreatic neuroendocrine carcinoma who developed immune-related myocarditis following treatment with ICIs. Additionally, the scRNA-seq data of heart specimens from deceased donors without cardiovascular diseases were collected and applied as normal control. To validate our findings and assess their specificity to ICI-related pathology, we analyzed mouse scRNA-seq data, including controls, ICI-related myocarditis, viral myocarditis, and autoimmune myocarditis.

Results

We found elevated proportions of lymphocytes, myeloid cells, and fibroblasts in the irAE group, suggesting an intensified inflammatory microenvironment in human immune-related myocarditis. Within the lymphocyte compartment, increased proportions of CD8 + T exhausted cells and CD8 + T proliferative cells were observed in the irAE group. The upregulated differentially expressed genes in myeloid cells in the irAE group were enriched in pro-inflammatory pathways, consistent with the observed metabolic shift from oxidative phosphorylation to glycolysis. CXCL9 + fibroblasts, characterized by the production of multiple pro-inflammatory cytokines and enriched in the JAK-STAT and TNFα signaling pathways, were predominantly found in the irAE group. Venous endothelial cells specifically expressing atypical chemokine receptor-1 (ACKR1) interacted with myeloid cells and CXCL9 + fibroblasts through the CXCL signaling pathway, facilitating chemokine transcytosis and leukocyte recruitment. Analysis of murine scRNA-seq data further supported these findings, revealing that exhausted CD8 + T cells and pro-inflammatory fibroblasts were uniquely enriched in ICI-related myocarditis, reflecting its distinct inflammatory microenvironment.

Conclusions

We elucidated the unique inflammatory microenvironment of immune-related myocarditis at the single-cell level. Our work revealed key cell subpopulations that were significantly implicated in inflammation, thus offering potential therapeutic targets.

Background

Immunotherapy has profoundly transformed the paradigm of cancer treatment in the past decade. Immune checkpoint inhibitors (ICIs) mainly target programmed cell death 1 (PD-1) or programmed cell death 1 ligand 1 (PD-L1) and cytotoxic T lymphocyte-associated protein 4 (CTLA-4), releasing T cells from the inhibition by cancer cells and thus enhancing their cytotoxicity. While the application of ICIs has yielded substantial survival benefits for patients across diverse cancer types, it also comes with the potential for various immune-related adverse events (irAEs) affecting multiple organs and tissues throughout the body [1]. Severe irAEs can interrupt anti-tumor therapy, compromise organ function, and even pose life-threatening risks. Myocarditis is a rare irAE but has a high mortality rate ranging from 25 to 50% in patients receiving ICIs [2]. Mechanistically, immune-related myocarditis is characterized by the infiltration of T cells and macrophages into heart tissues, leading to localized inflammation and cardiomyocyte damage [3]. However, the more specific mechanisms of immune-related myocarditis have not yet been fully elucidated. Corticosteroids are the first-line therapy recommended for immune-related myocarditis, with additional treatments such as immunosuppressive agents, intravenous immunoglobulin, and plasmapheresis being utilized in some complicated cases [4]. Nevertheless, some patients exhibit poor responses to treatment, indicating the need for further exploration into the complex microenvironment of immune-related myocarditis. Moreover, ICI-related myocarditis may exhibit distinct inflammatory and immunopathological features compared to myocarditis caused by other etiologies, such as viral infections, autoimmunity, or toxin exposure [5].

The emergence of single-cell technologies, exemplified by single-cell RNA sequencing (scRNA-seq), has encouraged researchers to elucidate the characteristics of individual cells within tissues. Several studies have leveraged single-cell technologies to decipher the cellular landscape of heart tissues affected by immune-related myocarditis in mice. Zhu et al. reported an expansion of effector memory CD8 + T cells in the heart tissues of Pdcd1–/– mice with spontaneous myocarditis compared with those of controls [6]. Axelrod et al. revealed that effector CD8 + T cells present in the hearts of Pdcd1–/– Ctla4+/– mice were specific for α-myosin and that depletion of CD8 + T cells could attenuate myocarditis [7]. Ma et al. discovered that in Ctla4+/– Pdcd1–/– ICI myocarditis mice, CXCL9 + CXCL10 + macrophages interacted with CD4 + and CD8 + T cells through the interferon (IFN)-γ signaling pathway [8]. Blockade of IFN-γ signaling was shown to reduce the expansion of CXCL9 + CXCL10 + macrophages and ameliorate myocarditis. These studies primarily concentrated on T cells and macrophages infiltrating heart tissues in mice, yet they lacked investigations into stromal cells, which constitute a significantly higher proportion and may also contribute to immune-related myocarditis in humans.

In this study, we conducted scRNA-seq on the endomyocardial biopsy sample obtained from a patient diagnosed with immune-related myocarditis. Additionally, we utilized scRNA-seq data of normal heart tissues obtained from donated specimens as controls [9], aiming to compare the cellular composition and functional differences between immune-related myocarditis and normal cardiac tissues. We identified crucial subpopulations of T/natural killer (NK) cells, myeloid cells, endothelial cells, and fibroblasts, which might contribute to myocardial inflammation and represent potential therapeutic targets. To validate our findings, we compared immune-related myocarditis with controls using mouse scRNA-seq data and further contrasted it with viral and autoimmune types, highlighting the unique inflammatory features of immune-related myocarditis.

Methods

Patient information and sample collection

A 71-year-old male with stage IV pancreatic neuroendocrine carcinoma (T4NxM1) and a PD-L1 tumor proportion score (TPS) of 30% received combination therapy of lenvatinib (8 mg/day) and toripalimab (a PD-1 inhibitor, 240 mg every three weeks). Eighteen days after the initiation of immunotherapy, he developed precordial discomfort and intermittent chest pain. Laboratory tests revealed markedly elevated cardiac biomarkers, including creatine kinase (CK: 959 U/L), creatine kinase-MB (CK-MB: 35 µg/L), and cardiac troponin I (cTnI: 0.19 µg/L), raising clinical suspicion of immune-related myocarditis. Cardiac magnetic resonance imaging revealed linear mid-wall late gadolinium enhancement in the basal interventricular septum, with no abnormalities on T2-weighted imaging. Endomyocardial biopsy was performed for immunohistochemistry and scRNA-seq to confirm the diagnosis of immune-related myocarditis. Biopsies were taken from the right side of the interventricular septum. This study was approved by the Ethics Committee of Peking Union Medical College Hospital. Written informed consent was provided by the patient.

scRNA-seq data acquisition and generation

The endomyocardial biopsy sample was washed in ice-cold RPMI1640 medium and dissociated using Multi-tissue dissociation kit 2 (Miltenyi). The number and viability of cells were determined by a fluorescence cell analyzer (Countstar® Rigel S2) with acridine orange (AO)/propidium iodide (PI) reagent after removing erythrocytes (Miltenyi 130-094-183). Then debris and dead cells were removed (Miltenyi 130-109-398/130-090-101). Finally, cells were washed twice in the RPMI1640 and resuspended in 1×phosphate-buffered saline (PBS) containing 0.04% bovine serum albumin at a concentration of 1 × 106 cells/mL. The scRNA-seq libraries were constructed using a SeekOne® MM Single Cell 3’ Library Preparation Kit following the manufacturer’s instructions (SeekGene, Beijing, China). The indexed sequencing libraries were cleaned with SPRI beads and sequenced on the Illumina NovaSeq 6000 platform with PE150 read length.

The raw scRNA-seq data of normal hearts were downloaded from the Human Cell Atlas (ERP123138) [9]. Heart samples were obtained from deceased donors without a history of cardiovascular disease. Four normal heart tissue samples, including two right verticle (RV) samples and two interventricular septum (SP) samples, were included in our study as normal controls. The raw data were then mapped to the reference genome GRCh38-3.0.0 with the CellRanger (v3.1.0) provided by 10× Genomics. Downstream bioinformatic analysis was carried out using R software (v4.3.1). The clinical information and sample details were summarized in Additional file 1: Table S1.

scRNA-seq data processing

The R package Seurat (v4.3.0.1) was applied to analyze the scRNA-seq data [10]. A total of 19,121 cells from five samples were integrated and used for downstream analysis. For quality control, cells with 200 ≤ gene numbers (nFeature_RNA) ≤ 3500, mitochondrial gene percentage ≤ 20%, and ribosomal gene percentage ≤ 20% were retained. Potential doublets were detected using the Python package Scrublet (v0.2.3) [11], and cells with doublet scores > 0.3 were excluded. Ambient RNA contamination was assessed using the R package DecontX (v1.4.0) [12], and cells with contamination scores > 0.15 were removed. A total of 15,639 high-quality cells passed the quality control filtering and were utilized for subsequent analysis. The single-cell count data matrix was normalized using the “NormalizeData” function. The top 2000 highly variable features were selected for principal component analysis (PCA) dimensionality reduction via the “RunPCA” function. For batch correction, we applied the “RunHarmony” function in the R package harmony (v0.1.1) to integrate different samples and eliminate the technical batch variations across patients [13]. Then we used “FindNeighbors” and “FindClusters” to cluster the cells. The R package clustree (v0.5.0) was applied to show the relationships between clusters and determine the clustering resolution [14]. “RunUMAP” and “RunTSNE” were used to visualize the dimension reduction plots of cells.

Cell type annotation

We identified the marker genes of each cluster by running the “FindAllMarkers” algorithm and annotated the clusters manually based on the expression of cell-specific genes reported in previous studies. We first grouped cells into seven major clusters, including lymphocytes (NKG7, TRBC2, and CD3D) [15], myeloid cells (S100A8, S100A9, and LYZ) [16], fibroblasts (DCN, COL1A1, and GSN) [9, 17], endothelial cells (VWF, CLDN5, and PECAM1) [9, 18], pericytes (AGT, RGS5, and ABCC9) [9, 19], smooth muscle cells (TAGLN, MYH11, and TPM2) [9, 20], and neuronal cells (PLP1, NRXN1, and S100B) [9, 18]. To delve deeper into the subclusters of these major cell types, we reclustered lymphocytes, myeloid cells, fibroblasts, and endothelial cells by repeating the aforementioned steps. Endothelial cell (EC) subpopulations were annotated based on reported marker genes: arterial ECs (ARL15, HEY1, SEMA3G, and IGFBP3) [9, 21], capillary ECs (FCN3, RGCC, and CA4) [9, 21], venous ECs (VCAM1, PLVAP, and ACKR1) [9, 22], and lymphatic ECs (TBX1, PROX1, CCL21, and MMRN1) [9, 21, 23].

Gene enrichment analysis

To investigate the differences in pathway enrichment between two clusters or two groups, differentially expressed genes (DEGs) were first identified with “FindAllMarkers” or “FindMarkers” in Seurat. Genes with|avg_log2FC| > 0.5 and adjusted p-values < 0.05 were considered as significant DEGs and were selected for enrichment analysis. Then the R package clusterProfiler (v4.11.0) was used to perform Gene Ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway analyses on selected DEGs with “enrichGO” and “enrichKEGG” [24]. Enriched pathway items with adjusted p-values < 0.05 were considered to be functionally significant. Gene set enrichment analysis (GSEA) was performed by “gseGO” and “GSEA” in clusterProfiler. Hallmark gene sets used in GSEA were downloaded from the MSigDB database (https://www.gsea-msigdb.org/gsea/msigdb).

Gene set variation analysis

Gene set variation analysis (GSVA) was performed with the R package GSVA (v1.42.0) [25]. Hallmark (H), curated (C2), and ontology (C5) gene sets were downloaded from the MSigDB database. The signature gene sets of T cells were based on previous studies [26, 27], including naive signature (CCR7, LEF1, SELL, and TCF7), regulatory signature (IL2RA, IL4R, IL7, TGFB1, TGFB3, TGFBI, and TGFBR1), costimulatory signature (CD226, ICOS, SLAMF1, TNFRSF14, TNFRSF25, and TNFRSF9), cytotoxic signature (CST7, GZMA, GZMB, IFNG, NKG7, and PRF1), exhausted signature (BTLA, CTLA4, HAVCR2, LAG3, PDCD1, and TIGIT), and proliferative signature (STMN1 and TUBB). The metabolic signature gene sets were downloaded from a curated database [28].

Signature score calculation

To evaluate the inflammatory signatures of subsets of monocytes/macrophages in the irAE and normal groups, we calculated the signature scores of CD14 + monocytes, CD16 + monocytes, antigen-presenting macrophages, and LYVE1 + macrophages in the irAE and normal groups. The M1, M2, pro-inflammatory, and anti-inflammatory signature gene sets were obtained from previous studies [29, 30] and were listed in Additional file 1: Table S2. The enrichment score of each cell was calculated using “AddModuleScore” in Seurat.

Developmental trajectory analysis

To construct single-cell developmental trajectories of monocytes/macrophages, we adopted the R package monocle3 (v1.2.9) to calculate the pseudotime values of single cells [31]. We set the parameter num_dim = 100 in “preprocess_cds” and reduction_method=“UMAP” in “reduce_dimension” and “plot_cells”. In addition, “learn_graph” was used to establish the trajectory. We set CD14 + monocytes as the root of trajectory in “order_cells” based on previous literature indicating that CD14 + monocytes might be the precursors of monocytes/macrophages. The function “graph_test” was adopted to identify genes that were differentially expressed along the trajectory, and the alterations in gene expression were displayed in the form of heatmaps. The monocle2 algorithm (v2.30.0) was also applied to construct a differentiation tree for monocytes/macrophages using the DDRTree method with default parameters [32].

Cell-cell communication analysis

The R package CellChat (v1.6.1) was applied to infer the ligand-receptor interactions among different cell clusters [33]. The normalized gene expression matrix of cells was used as input data. The visualization of cell-cell communication results was also achieved by CellChat. To compare the intercellular communication networks between immune-related myocarditis and normal heart tissue, we ran CellChat on gene expression matrices of the irAE group and normal group separately and merged them by the “mergeCellChat” function. Ligand-receptor interactions with p-values < 0.05 were considered significant.

Pathway analysis and transcription factor analysis

The R package decoupleR (v2.8.0), which facilitates access to the PROGENy model and DoRothEA gene regulatory network, was applied to calculate the biological activities of single cells based on the normalized log-transformed gene expression matrix [34]. The PROGENy model contains signature genes of 14 canonical pathways and was used to calculate the pathway activity scores of each cell. The DoRothEA network is a database containing information on the interactions between transcription factors and their targets and was used to predict the transcription factor activities of each cell.

Cytokine signaling analysis

We utilized the CytoSig platform (https://cytosig.ccr.cancer.gov/) to predict cytokine signaling activities of different cellular clusters [35]. We generated the scaled gene expression matrix of four fibroblast subclusters using the “AverageExpression” function in Seurat and used it as input data for CytoSig. Then we downloaded the cytokine activity prediction results and employed them for subsequent analysis and visualization in R.

Analysis of murine scRNA-seq data

To validate findings in humans and compare immune-related myocarditis with other myocarditis subtypes, we analyzed five publicly available mouse scRNA-seq datasets from the Gene Expression Omnibus database: GSE213486 [7] and GSE227437 [8] for ICI-related myocarditis; GSE174458 [36] and GSE189636 [37] for viral myocarditis; and GSE142564 [38] for autoimmune myocarditis (Additional file 1: Table S5). Corresponding control samples were used as references for downstream comparisons. The canonical correlation analysis (CCA) method was applied to correct for batch effects in mouse data [39]. The cell distribution variance of each cell subset across different pathogenic groups was assessed by calculating the ratio of observed to expected (Ro/e) cell numbers [40]. An Ro/e score greater than 1 indicated enrichment of the particular cell cluster in the corresponding group.

Statistical analysis

All statistical analyses and presentations were performed in R. All statistical tests used were defined in the figure legends. Statistical significance was set at p-value or adjusted p-value < 0.05.

Results

Single-cell characterization of the immune-related myocarditis microenvironment

To explore the mechanisms underlying immune-related myocarditis, we performed scRNA-seq on the endomyocardial biopsy obtained from a patient who received the anti-PD-1 inhibitor toripalimab and was pathologically confirmed to have immune-related myocarditis (Fig. 1A, B). Moreover, we collected scRNA-seq data from 4 heart samples obtained from deceased donors to serve as normal controls, aiming to elucidate the differences between the irAE group and the normal group (Fig. 1A).

Fig. 1
figure 1

Single-cell landscape of immune and stromal cells of heart tissues. (A) Workflow of the overall study design. Created with BioRender.com. (B) Hematoxylin-eosin (H&E) staining and immunohistochemistry (IHC) staining (positive for CD3, CD4, CD8, and CD63; negative for CD20) of endomyocardial biopsies from the patient diagnosed with immune-related myocarditis (150× magnification). (C) Uniform Manifold Approximation and Projection (UMAP) projection of all captured cells which are colored by major cell types. (D) Dot plot showing the expression of marker genes of seven major cell types. The dot size and color indicate the percentage and level of expression, respectively. (E) Heatmap of the top 5 differentially expressed genes (DEGs) expression of each major cell cluster. (F) Cell type correlation heatmap showing the relationship among seven major cell subpopulations based on the average expression of the top 2,000 variable genes ranked by standard deviation, using Spearman’s correlation analysis. (G) Proportions of major cell types in the irAE and normal groups. irAE, immune-related adverse event

Full size image

After stringent quality control, a total of 15,639 single cells were obtained from irAE and normal heart tissues. Cardiomyocytes were excluded as they were difficult to capture by droplet-based scRNA-seq technology [41] and all other cells were included in the subsequent analysis. The cells were clustered into seven major cell types, including lymphocytes, myeloid cells, endothelial cells, fibroblasts, smooth muscle cells, pericytes, and neuronal cells (Fig. 1C; Additional file 2: Fig. S1A). The clusters were identified based on the expression of canonical cell markers (Fig. 1D, E; Additional file 2: Fig. S1B). Non-immune cells dominated heart tissues, while immune cells, including lymphocytes and myeloid cells, were scarce. The cell type correlation matrix also revealed a distinct separation of phenotypes between immune cells and non-immune cells, with stronger correlations observed among endothelial cells, pericytes, and smooth muscle cells, which were associated with the cardiac vasculature (Fig. 1F). Compared with normal heart tissues, the heart with immune-related myocarditis had an increased proportion of immune cells, consistent with the fact that a large number of immune cells were recruited to the heart in myocarditis (Fig. 1G). This pattern was consistent across all the samples (Additional file 2: Fig. S1C). Notably, fibroblasts were significantly more abundant in the irAE group, indicating that damaged myocytes were gradually substituted by fibroblasts when the inflamed heart tissue healed [42].

CD8 + T cells were converted to an exhausted state in immune-related myocarditis

To gain a deeper understanding of the T/NK compartment, we identified 5 subsets of lymphocytes, including CD4 + T, CD8 + effector memory T (CD8 + Tem), CD8 + exhausted T (CD8 + Tex), CD8 + proliferative T (CD8 + Tprolif), and NK cells (Fig. 2A; Additional file 2: Fig. S2A). Among the subpopulations of CD8 + T cells, CD8 + Tem cells highly expressed the cytotoxic marker GZMA and the effector memory marker GZMK (Fig. 2B) [43]. CD8 + Tex cells expressed high levels of immune checkpoint genes CTLA4, HAVCR2, LAG3, and TIGIT (Additional file 2: Fig. S2B, C), representing an exhausted state. CD8 + Tprolif cells exhibited specific expression of proliferative markers MKI67, STMN1, and TOP2A (Fig. 2B; Additional file 2: Fig. S2B, C). Utilizing canonical gene signatures of T cell subtypes, we observed that CD8 + Tem cells displayed the highest cytotoxic score among T cell subsets, while CD8 + Tex cells showed a slight reduction in cytotoxicity compared to CD8 + Tem cells (Fig. 2C; Additional file 2: Fig. S2C). The proportions of CD8 + Tex and CD8 + Tprolif cells were significantly increased in immune-related myocarditis (Fig. 2D), indicating that CD8 + T cells continued to replicate and gradually became exhausted during chronic antigen exposure and sustained inflammatory stimulation.

Fig. 2
figure 2

CD8 + T cells were converted to exhausted states in the irAE group. (A) UMAP projection of all lymphocytes across all samples as well as the irAE and normal groups, respectively. (B) Heatmap of marker gene expression of T/NK subpopulations. (C) Heatmap showing the signature scores of T cell subpopulations, including naive, regulatory, costimulatory, cytotoxic, exhausted, and proliferative. (D) Proportions of T/NK subpopulations in the irAE and normal groups. (E) Cytotoxic and exhausted signature scores of CD8 + Tem cells in the irAE and normal groups. P values were determined by the Wilcoxon test. (F) Metabolic activity scores of T/NK subpopulations in the irAE and normal groups. (G) Violin plots showing the glycolysis scores of lymphocytes in the irAE and normal groups. P values were determined by the Wilcoxon test. * p < 0.05, ** p < 0.01, *** p < 0.001, and **** p < 0.0001 were considered statistically significant. CD8 + Tem, CD8 + effector memory T; CD8 + Tex, CD8 + exhausted T; CD8 + Tprolif, CD8 + proliferative T; NK, natural killer; UMAP, Uniform Manifold Approximation and Projection; irAE, immune-related adverse event

Full size image

Given that CD8 + Tem cells constituted a significant proportion of both the irAE and normal groups, we compared the signatures of CD8 + Tem cells between the two groups. Notably, CD8 + Tem cells exhibited significantly lower cytotoxicity in immune-related myocarditis than other samples in the normal group, whereas they showed increased exhaustion scores in the irAE group (Fig. 2E). This might be explained by the transition of CD8 + T cells from the effector memory state to the exhausted state in immune-related myocarditis. In addition, we investigated the metabolic characteristics of all T/NK subsets in irAE and normal heart tissues. Compared with those in normal heart tissues, all subpopulations of lymphocytes in myocarditis tissue showed decreased oxidative phosphorylation and fatty acid oxidation pathway activities (Fig. 2F). This could be explained by a metabolic shift from oxidative phosphorylation to aerobic glycolysis under inflammatory conditions, enabling sufficient energy generation for cell proliferation and cytokine synthesis [44]. We evaluated the glycolysis pathway enrichment of all T/NK cells and found that lymphocytes in immune-related myocarditis significantly upregulated glycolysis metabolic activities (Fig. 2G), confirming the metabolic switch from oxidative phosphorylation to glycolysis. Moreover, the O-glycan and N-glycan biosynthesis pathways were found to be upregulated in lymphocytes in the irAE group (Fig. 2F). Previous studies reported that O-glycans might play a role in leukocyte trafficking to inflamed tissues [45, 46] and N-glycans might be related to ligand-receptor binding during immune responses [47], potentially exacerbating inflammation in immune-related myocarditis.

Enhanced pro-inflammatory signatures in myeloid cells in immune-related myocarditis

Myeloid cells were classified into 6 subpopulations based on cluster-specific markers (Fig. 3A, B; Additional file 2: Fig. S3A, B). To explore the relationships among the subsets of monocytes/macrophages, we performed trajectory analysis on antigen-presenting macrophages, LYVE1 + macrophages, CD14 + monocytes, and CD16 + monocytes. The trajectory started from CD14 + monocytes, transited through CD16 + monocytes, and bifurcated into two branches toward antigen-presenting macrophages and LYVE1 + macrophages (Fig. 3C; Additional file 2: Fig. S3C). DEGs along the trajectory were identified, and tissue-resident markers of LYVE1 + macrophages, including COLEC12, F13A1, LYVE1, CD209, and FOLR2, were upregulated at the later stage of pseudotime (Additional file 2: Fig. S3D) [48, 49]. LYVE1 + macrophages resided in the heart and played a crucial role in tissue homeostasis maintenance and anti-inflammation [41]. Antigen-presenting macrophages showed high expression levels of cytokine genes such as CCL3L1, CCL3, CCL4, CXCL9, and CXCL10 as well as antigen-presentation genes such as HLA-DQB1, HLA-DPA1, HLA-DQA1, HLA-DPB1, and HLA-DRB5, indicating their essential role in immune cell recruitment and regulation of immune responses (Additional file 2: Fig. S3E). The proportion of antigen-presenting macrophages in the irAE group was higher than that in the normal group, which might explain the higher inflammatory levels in immune-related myocarditis (Fig. 3D).

Fig. 3
figure 3

Upregulation of pro-inflammation signatures in myeloid cells in the irAE group. (A) UMAP projection of all myeloid cells across all samples as well as the irAE and normal groups, respectively. (B) Heatmap of marker gene expression of myeloid cell subpopulations. (C) Monocle3 pseudotime trajectory showing the developmental paths of monocyte/macrophage subsets. (D) Proportions of myeloid cell subpopulations in the irAE and normal groups. (E) Volcano plot showing DEGs of myeloid cells between the irAE group and the normal group. (F) Top enriched Gene Ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) pathways of DEGs upregulated in myeloid cells in the irAE group. (G) Gene set enrichment analysis (GSEA) showing activated and suppressed hallmark pathways of myeloid cells in the irAE group. (H) GSEA revealing upregulation of pathways including TNFα signaling via NFκB, inflammatory response, and hypoxia, as well as downregulation of oxidative phosphorylation pathway in myeloid cells in the irAE group. (I) Heatmap showing the M1, M2, pro-inflammatory, and anti-inflammatory signature scores of monocyte/macrophage subsets in the irAE and normal groups. LYVE1, lymphatic vessel endothelial hyaluronan receptor 1; S100P, S100 calcium binding protein P; Antigen-presenting Macro, antigen-presenting macrophage; CD14 + Mono, CD14 + monocyte; CD16 + Mono, CD16 + monocyte; LYVE1 + Macro, LYVE1 + macrophage; NES, normalized enrichment score; UMAP, Uniform Manifold Approximation and Projection; irAE, immune-related adverse event

Full size image

Moreover, to study the transcriptomic differences of myeloid cells between immune-related myocarditis and normal heart tissues, we identified DEGs between the two groups. Notably, myeloid cells in the irAE group exhibited significant upregulation of genes related to cytokines or chemokines (IL1B, CCL2, CCL3, CCL4, CCL3L1, CXCL2, CXCL3, CXCL8, and CXCL9), major histocompatibility complex (MHC) proteins (HLA-DRB5, HLA-DQA1, HLA-DQB1, HLA-DPA1, and HLA-B), interferon signaling (IFI30), and tumor necrosis factor (TNF) (Fig. 3E; Additional file 1: Table S3). Functional enrichment analysis showed that upregulated genes in irAE were associated with cytokine production and leukocyte migration, activation, and differentiation, as well as inflammatory pathways such as the NF-κB, TNF, IL-17, and chemokine signaling pathways (Fig. 3F). GSEA revealed that myeloid cells in the irAE group were enriched in GO pathways such as adaptive immune response, cytokine-mediated signaling pathway, leukocyte migration, and positive regulation of leukocyte cell-cell adhesion (Additional file 2: Fig. S3F), as well as hallmark pathways including TNFα signaling via NF-κB, inflammatory response, and hypoxia (Fig. 3G, H). Notably, the oxidative phosphorylation pathway activity was significantly downregulated in myeloid cells in immune-related myocarditis (Fig. 3H). The inflammatory processes in myocarditis might induce a hypoxic microenvironment, thereby inhibiting electron transport in myeloid cells and suppressing oxidative phosphorylation [44]. We next evaluated the inflammatory signatures of monocyte/macrophage subsets in the irAE and normal groups. Among the four monocyte/macrophage subpopulations, antigen-presenting macrophages exhibited the highest M1 and pro-inflammatory scores, while LYVE1 + macrophages showed higher M2 scores than M1 scores, consistent with their role in homeostatic regulation as tissue-resident macrophages (Fig. 3I). Moreover, antigen-presenting macrophages, CD14 + monocytes, and CD16 + monocytes in the irAE group exhibited significantly higher M1 and pro-inflammatory scores than those in the normal group, consistent with previous findings suggesting that pro-inflammatory macrophages showed impaired oxidative phosphorylation metabolism and relied primarily on glycolysis instead [50, 51].

Enhanced intercellular communications among immune cells in immune-related myocarditis

The interplay among immune cells directly contributes to inflammation and leads to damage to myocardial tissue. Consequently, we compared intercellular communications among immune cells between the irAE group and the normal group. We observed heightened interaction strength among immune cells with increased enrichment of pathways including CCL, CXCL, MHC-II, and TNF in the irAE group, revealing a more pronounced inflammatory state in immune-related myocarditis (Fig. 4A; Additional file 2: Fig. S4A). Stronger intercellular interactions were identified in the irAE group, with myeloid cells acting as senders and lymphocytes acting as receivers (Fig. 4B). Antigen-presenting macrophages, CD14 + monocytes, and CD16 + monocytes demonstrated stronger interactions with other immune cells in immune-related myocarditis (Fig. 4C). Further investigation of the CCL pathway revealed more signals sent from antigen-presenting macrophages, CD14 + monocytes, and CD16 + monocytes to CD8 + T cells and NK cells in the irAE group (Fig. 4D; Additional file 2: Fig. S4B). Antigen-presenting macrophages, CD14 + mono, and CD16 + mono were also key sources of signaling in the upregulated TNF pathway network of immune-related myocarditis, with S100P − neutrophils, S100P + neutrophils, and T/NK cells being the primary receivers (Fig. 4E; Additional file 2: Fig. S4C). The top ligand-receptor pairs between myeloid cells and lymphocytes significantly upregulated in the irAE group included TNF–TNFRSF1B, CCL4–CCR5, CCL3–CCR5, CCL3–CCR1, and CCL3L1–CCR1 (Fig. 4F). Furthermore, enhanced interactions of S100P − and S100P + neutrophils with CD8 + Tex cells through CXCL16–CXCR6 were also observed in the irAE group (Fig. 4F). These findings might explain the heightened secretion of inflammatory cytokines and the increased recruitment of immune cells to heart tissue in immune-related myocarditis, identifying potential therapeutic targets to inhibit immune cell interactions and alleviate myocarditis severity.

Fig. 4
figure 4

Increased cell-cell communications among immune cells in the irAE group. (A) Bar plots showing the number of interactions and interaction strength among immune cells in the irAE and normal groups. (B) Circle plot showing differential interaction strength among immune cell subpopulations between the irAE group and the normal group. Red colored lines represent increased signaling and blue colored lines represent decreased signaling in the irAE group. (C) Heatmap illustrating differential interaction strength among immune cell subsets in the irAE group vs. the normal group. The x-axis represents the signaling receivers and the y-axis represents the signaling senders. (D) Circle plots showing the CCL signaling pathway networks among immune cells in the irAE and normal groups. (E) Circle plots showing the TNF signaling pathway networks among immune cells in the irAE and normal groups. (F) Bubble plot showing the enriched ligand-receptor pairs among immune cells with color representing the communication probability and size reflecting the p-value significance. CD8 + Tem, CD8 + effector memory T; CD8 + Tex, CD8 + exhausted T; CD8 + Tprolif, CD8 + proliferative T; NK, natural killer; Antigen-presenting Macro, antigen-presenting macrophage; CD14 + Mono, CD14 + monocyte; CD16 + Mono, CD16 + monocyte; LYVE1 + Macro, LYVE1 + macrophage; CCL, C-C motif chemokine ligand; TNF, tumor necrosis factor; irAE, immune-related adverse event

Full size image

Augmented inflammatory responses related to endothelial cells in immune-related myocarditis

As non-immune cells constituted the vast majority of cells in heart tissue, we subsequently conducted a detailed investigation into subpopulations of vascular cells and fibroblasts. Within vascular cells, in addition to smooth muscle cells and pericytes, we identified 5 subsets of endothelial cells: arterial ECs (HEY1 + SEMA3G+), capillary ECs (RGCC + CA4+), immune capillary ECs (CX3CL1 + GBP1+), venous ECs (ACKR1 + PLVAP+), and lymphatic ECs (TBX1 + PROX1+) (Fig. 5A, B; Additional file 2: Fig. S5A, B). GO analysis was performed on the genes upregulated in venous ECs, and pathways associated with cytokine binding, MHC-II protein function, and leukocyte activation and adhesion were enriched (Fig. 5C). These results might suggest a crucial role for venous ECs in inflammatory regulation, consistent with the findings of a previous study [52]. Moreover, we identified DEGs of endothelial cells between the irAE group and the normal group and found that endothelial cells in immune-related myocarditis significantly upregulated genes related to inflammatory chemokines (CCL2, CXCL3, CX3CL1, and CXCL12), antigen presentation (CD74, HLA-DPA1, HLA-DRB5, and HLA-B), TNF, and inflammation-related transcription factors (FOSB, JUN, JUNB, and JUND) (Fig. 5D; Additional file 1: Table S4). These upregulated genes in the irAE group were enriched in pathways including antigen processing and presentation, the TNF signaling pathway, the IL17 signaling pathway, Th17 cell differentiation, and viral myocarditis (Fig. 5E). These findings indicated that endothelial cells in immune-related myocarditis displayed close connections with immune cells, potentially contributing to the dissemination and amplification of inflammation.

Fig. 5
figure 5

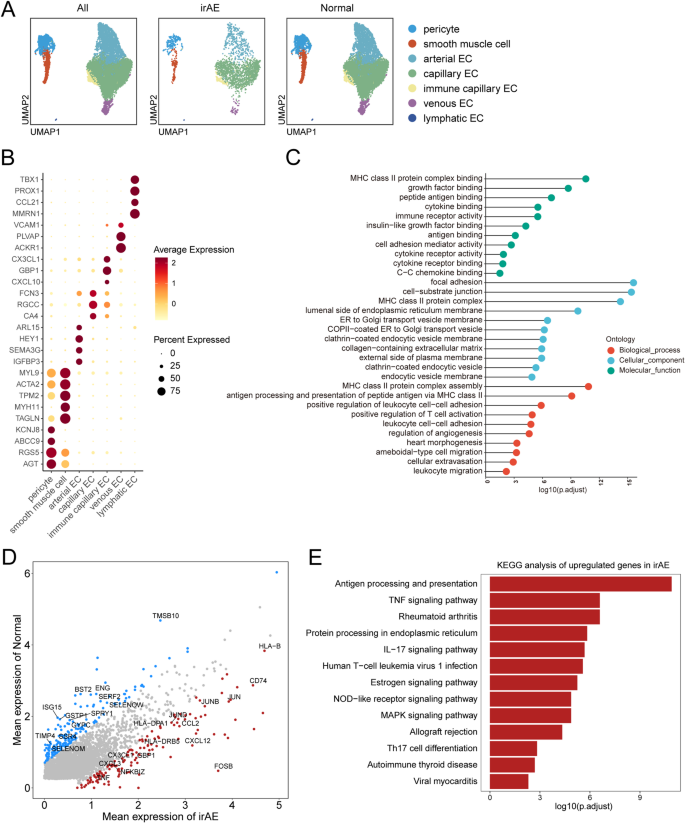

Endothelial cells were closely associated with immune-related myocarditis. (A) UMAP projection of all vascular cells across all samples as well as the irAE and normal groups, respectively. (B) Dot plot showing the expression levels of marker genes of each subpopulation. (C) GO analysis of specific marker genes of venous ECs. (D) Volcano plot showing DEGs of endothelial cells between the irAE group and the normal group. (E) Top enriched KEGG pathways of upregulated genes of endothelial cells in the irAE group. arterial EC, arterial endothelial cell; capillary EC, capillary endothelial cell; immune capillary EC, immune capillary endothelial cell; venous EC, venous endothelial cell; lymphatic EC, lymphatic endothelial cell; UMAP, Uniform Manifold Approximation and Projection; irAE, immune-related adverse event

Full size image

CXCL9 + fibroblasts were expanded in immune-related myocarditis

We next explored the heterogeneity of fibroblasts and identified 4 subsets based on the expression of cluster-specific marker genes: GPX3 + Fibro, BTG2 + Fibro, CXCL9 + Fibro, and POSTN + Fibro (Fig. 6A, B; Additional file 2: Fig. S6A, B). GPX3 + and POSTN + fibroblasts were present in both immune-related myocarditis and normal cardiac tissues, whereas CXCL9 + and BTG2 + fibroblasts were almost exclusively found in tissues with myocarditis (Fig. 6A). GO analysis showed the enrichment of GPX3 + fibroblasts and POSTN + fibroblasts in pathways related to extracellular matrix organization, essential for cardiac tissue homeostasis (Fig. 6C). BTG2 + fibroblasts were enriched in stress response pathways such as response to unfolded protein, response to topologically incorrect protein, and unfolded protein binding, suggesting the stressed conditions in immune-related myocarditis (Fig. 6C). CXCL9 + fibroblasts exhibited high expression levels of chemokine genes (CXCL9 and CXCL10) and antigen-presenting genes (CD74 and HLA class II genes) and were enriched in pathways involved in antigen processing and presentation, MHC protein complex assembly, and response to type II interferon (Fig. 6B, C; Additional file 2: Fig. S6C).

Fig. 6
figure 6

CXCL9 + fibroblasts played an important role in inflammation. (A) UMAP projection of all fibroblasts across all samples as well as the irAE and normal groups, respectively. (B) Heatmap showing marker gene expression of fibroblast subpopulations. (C) Enriched GO pathway terms of marker genes of each fibroblast subpopulation. (D) Heatmap of normalized PROGENy pathway activity scores of fibroblast subpopulations. (E) Bar plot showing the enrichment scores of top transcription factors upregulated (red) and downregulated (blue) in CXCL9 + fibroblasts. (F) Heatmap showing the cytokine signaling scores of four fibroblast subsets. (G) Incoming and outgoing interaction strengths of all cell clusters in human heart tissues. GPX3 + Fibro, GPX3 + fibroblast; BTG2 + Fibro, BTG2 + fibroblast; CXCL9 + Fibro, CXCL9 + fibroblast; POSTN + Fibro, POSTN + fibroblast; TFs, transcription factors; UMAP, Uniform Manifold Approximation and Projection; irAE, immune-related adverse event

Full size image

As CXCL9 + fibroblasts were rarely present in healthy heart tissues, we extensively investigated the function of CXCL9 + fibroblasts in immune-related myocarditis. We first calculated the pathway activities of four fibroblast subclusters and found that CXCL9 + fibroblasts showed high activities in the JAK-STAT and TNFα pathways, which were closely associated with inflammatory and autoimmune diseases (Fig. 6D) [53, 54]. Additionally, we inferred the transcription factors regulating each fibroblast subset and found that the activities of many transcription factors were upregulated in CXCL9 + fibroblasts (Additional file 2: Fig. S6D). Compared to those in the other three clusters, transcription factors enriched in CXCL9 + fibroblasts were related to MHC class II gene expression (CIITA, RFXAP, RFXANK, and RFX5) [55, 56] and interferon signaling pathways (IRF1, IRF9, and STAT1) [57], contributing to the heightened immune response in immune-related myocarditis (Fig. 6E). To further investigate the cytokine signaling profiles of CXCL9 + fibroblasts, we applied Cytosig to predict the cytokine signatures of the four fibroblast subclusters. Consistent with the findings of the pathway analysis and transcription factor analysis, CXCL9 + fibroblasts demonstrated elevated activities of pro-inflammatory cytokine pathways such as IFNG, PDGFD, IL1B, and TNFA, and downregulated expression of anti-inflammatory cytokine signaling pathways IL4 and IL10 (Fig. 6F) [58]. These findings revealed the crucial role of CXCL9 + fibroblasts in presenting antigens to immune cells, producing and responding to cytokines, and thereby promoting inflammation.

The interaction between stromal cells and immune cells contributed to inflammation in immune-related myocarditis

As endothelial cells and fibroblasts participated significantly in inflammation, we explored the cell-cell communications between stromal cells and immune cells in heart tissue. Interestingly, in the CXCL and CCL signaling pathway networks, venous ECs were the main signaling receiver and antigen-presenting macrophages were the major sender (Fig. 7A, B). CD14 + monocytes and CXCL9 + fibroblasts also contributed to the CXCL pathway by producing CXC-chemokines (Fig. 7A). As myeloid cells were the main providers of CXCL signaling, we next compared the differences in the CXCL pathway between myeloid cells and venous ECs in the irAE group and the normal group. In immune-related myocarditis, the CXCL pathways exhibited increased enrichment between venous ECs and myeloid cells including antigen-presenting macrophages, CD14 + monocytes, and CD16 + monocytes, as compared to normal heart tissues (Fig. 7C). The ligand-receptor pair analysis revealed that CXCL2–ACKR1, CXCL3–ACKR1, CXCL8–ACKR1, and CXCL9–ACKR1 interactions were enriched in immune-related myocarditis (Fig. 7D). Atypical chemokine receptor-1 (ACKR1) was highly expressed in venous ECs (Fig. 5B) and was involved in the transcytosis of chemokines from the subluminal to luminal side upon binding to them, thereby facilitating the recruitment of circulating leukocytes to the inflamed tissues [59].

Fig. 7
figure 7

The interaction between stromal cells and immune cells contributed to inflammation in immune-related myocarditis. (A) Heatmaps showing the signaling roles and contributions of cell subpopulations in the CXCL signaling pathway network. (B) Heatmaps showing the signaling roles and contributions of cell subpopulations in the CCL signaling pathway network. (C) Interaction strengths of CXCL signaling pathways between myeloid cell subpopulations (senders) and venous ECs (receivers) in the irAE and normal groups. (D) Bubble plot showing the enriched ligand-receptor pairs of CXCL signaling pathways between myeloid cell subpopulations and venous ECs in the irAE and normal groups. (E) Chord diagrams of CCL and CXCL signaling pathways between fibroblast subpopulations (senders) and endothelial cell subpopulations (receivers). (F) Bubble plot showing the enriched ligand-receptor pairs of CCL and CXCL signaling pathways between CXCL9 + fibroblasts and other cells. CCL, C-C motif chemokine ligand; CXCL, C-X-C motif chemokine ligand; irAE, immune-related adverse event

Full size image

Furthermore, CXCL9 + fibroblasts were also identified as an important source of CXCL and CCL signaling pathways (Fig. 7A, B), prompting us to further investigate their interactions with other cells. Notably, among the four fibroblast subsets, CXCL9 + fibroblasts demonstrated the most significant enrichment of signaling pathways toward lymphocytes and myeloid cells, such as the MHC-I, MHC-II, CXCL, and CCL pathways. It indicated that CXCL9 + fibroblasts showed strong interactions with immune cells, primarily through the presentation of antigens or the production of chemokines by lymphocytes and myeloid cells (Additional file 2: Fig. S7A, B). Additionally, we explored the interactions between fibroblasts and endothelial cells and found a notable enrichment of CXCL pathways between CXCL9 + fibroblasts and venous ECs (Fig. 7E; Additional file 2: Fig. S7C). Among the CXCL and CCL pathways, the most significantly enriched ligand-receptor pairs between CXCL9 + fibroblasts and venous ECs included CXCL2–ACKR1, CXCL8–ACKR1, CXCL9–ACKR1, CXCL10–ACKR1, and CXCL11–ACKR1, with CCL2–ACKR1 exhibiting notable prominence (Fig. 7F). CXCL9 + fibroblasts exhibited robust interactions with venous ECs and the chemokines produced by CXCL9 + fibroblasts could undergo transcytosis by venous ECs and enter the bloodstream, thereby enhancing leukocyte recruitment and exacerbating cardiac tissue inflammation.

Murine single-cell profiling validated unique immune and stromal characteristics in immune-related myocarditis

To validate the inflammatory features of human immune-related myocarditis and assess their specificity to ICI-related pathology, we analyzed mouse scRNA-seq data, comparing ICI-related myocarditis with controls, as well as with viral and autoimmune myocarditis. The major cell subpopulations were also identified in mice (Fig. 8A; Additional file 2: Fig. S8A-D). As only CD45 + cells were available for autoimmune myocarditis, it was excluded from stromal cell comparisons.

Fig. 8
figure 8

Mouse single-cell transcriptomic analysis revealed distinct immune and stromal features of immune-related myocarditis. (A) UMAP projection of cardiac cell populations in murine hearts across four groups: control, irAE, viral, and autoimmune myocarditis. (B) Group prevalence of each T/NK cell subset estimated by the Ro/e score, representing the ratio of observed to expected cell numbers. (C) Boxplots showing the exhaustion and glycolysis signature scores of all T/NK cells in each group. P values were determined by the Wilcoxon test. (D) Heatmap showing the M1, M2, pro-inflammatory, and anti-inflammatory signature scores of monocyte/macrophage subpopulations across four groups. (E) Bubble plot showing the enriched ligand-receptor pairs of TNF and CCL signaling pathways between monocytes/macrophages and endothelial cells. (F) Group prevalence of each fibroblast subset estimated by the Ro/e score. (G) Heatmap of normalized PROGENy pathway activity scores of fibroblast subpopulations in murine hearts. (H) Incoming and outgoing interaction strengths of all cell subpopulations in murine heart tissues. * p < 0.05, ** p < 0.01, *** p < 0.001, and **** p < 0.0001 were considered statistically significant. irAE, immune-related adverse event; UMAP, Uniform Manifold Approximation and Projection; TNF, tumor necrosis factor; CCL, C-C motif chemokine ligand

Full size image

Across the four conditions, the irAE group showed the highest proportion of T/NK cells among all immune cells (Additional file 2: Fig. S8E). Consistent with human data, exhausted CD8 + T cells were significantly enriched in immune-related myocarditis compared to controls, as well as viral and autoimmune myocarditis (Fig. 8B; Additional file 2: Fig. S9A-C). T/NK cells in the irAE group exhibited the highest overall expression of exhaustion signatures (Fig. 8C), suggesting lymphocyte exhaustion as a distinct feature of immune-related myocarditis. Additionally, T/NK cells in the irAE group had higher glycolysis scores than controls but lower than the autoimmune group (Fig. 8C). Within the myeloid compartment, we identified a cluster resembling antigen-presenting macrophages in human hearts, showing high Cxcl9 and antigen-presentation genes (H2-DMb1, H2-DMb2, and H2-DMa) expression, which was designated as Macro_Cxcl9 (Additional file 2: Fig. S10A-C). Another subset, Macro_Folr2, highly expressed tissue-resident markers Folr2 and Lyve1, recapitulating the phenotype of human LYVE1 + macrophages (Additional file 2: Fig. S10A-C). Across conditions, monocyte/macrophage subsets in the irAE group exhibited the highest M1 and pro-inflammatory signatures, with Macro_Cxcl9 being the most prominent (Fig. 8D). DEGs upregulated in the irAE group compared to the other groups were consistently enriched in immune activation and immune response regulation pathways, underscoring the unique characteristics of myeloid cells in immune-related myocarditis (Additional file 2: Fig. S10D-F).

Murine endothelial cell subpopulations largely corresponded to their human counterparts (Additional file 2: Fig. S11A-C), though venous ECs lacked expression of Ackr1, a marker gene for human venous ECs (Additional file 2: Fig. S11D). Compared to controls, endothelial cells in the irAE group exhibited upregulated genes enriched in multiple inflammatory pathways, whereas those upregulated relative to the viral group were linked to metabolism and immune cell chemotaxis (Additional file 2: Fig. S11E, F). The Tnf–Tnfrsf1a interaction between macrophages and ECs was stronger in the irAE group than in the control group (Fig. 8E). Ccl chemokine–Ackr2 interactions were enriched exclusively between macrophages and lymphatic ECs in the irAE group, reflecting a species-specific mechanism of leukocyte recruitment (Fig. 8E). We also identified a fibroblast cluster, Fibro_Cxcl10, characterized by high expression of Cxcl9, Cxcl10, interferon-stimulated genes (Gbp4, Gbp6, Gbp10, and Stat1), and MHC-I genes (H2-Q4, H2-Q6, and H2-Q7) (Additional file 2: Fig. S12A-C). This cluster was significantly enriched in the irAE group, with higher levels than in the control and viral myocarditis samples (Fig. 8F). It exhibited strong activation of the JAK-STAT and TNFα pathways and was highly involved in immune response regulation (Fig. 8G; Additional file 2: Fig. S12D). Intercellular communication analysis identified Cxcl10 + fibroblasts as the most prominent signaling senders (Fig. 8H), highly paralleling the role of human CXCL9 + fibroblasts (Fig. 6G). They maintained extensive interactions with other stromal and immune cells (Additional file 2: Fig. S12E), underscoring their involvement in myocarditis progression.

Discussion

Immune-related myocarditis is rare but can be life-threatening. Elucidating the mechanisms underlying immune-related myocarditis is crucial for identifying key pro-inflammatory cells, identifying potential therapeutic targets, and improving patient prognosis. Current single-cell research primarily utilizes mouse models and focuses on immune cells, and further investigations into the role of stromal cells within the myocarditis microenvironment in humans are lacking. In this study, we performed scRNA-seq on the endomyocardial biopsy sample obtained from a patient with immune-related myocarditis and used heart specimens from donors without heart diseases as the control group. We conducted a detailed investigation into the functions of immune cells and stromal cells and compared their differences between the irAE and normal groups. Our analysis revealed an increase in immune cells and fibroblasts in immune-related myocarditis, contributing to cardiac inflammation, as well as the injury and repair of cardiomyocytes.

To elucidate the mechanisms of localized inflammation in immune-related myocarditis, we undertook a deeper investigation into the cellular subpopulations. Within the lymphocyte compartment, there was a greater proportion of CD8 + Tex and CD8 + Tprolif cells than in normal heart tissues, indicating that a highly inflammatory environment contributed to the exhaustion and proliferation of CD8 + T cells. Similar patterns have been reported in anti-PD-1-induced type 1 diabetes and immune-related colitis, where CD8 + T cells demonstrated a shift toward the terminally exhausted/effector-like phenotype, as compared to both non-irAE inflammatory tissues and healthy controls [60]. During pro-inflammatory responses, the activities of fatty acid oxidation and oxidative phosphorylation in immune cells are inhibited, whereas glycolysis is enhanced [61]. Consistently, in our study, the single-cell metabolic analysis of lymphocytes also revealed a shift from oxidative phosphorylation and fatty acid oxidation to glycolysis in immune-related myocarditis, revealing the highly inflammatory nature of this condition.

Antigen-presenting macrophages with high expression levels of cytokine and antigen-presentation genes, indicative of an inflammatory macrophage subpopulation, comprised a higher proportion in immune-related myocarditis. Myeloid cells in immune-related myocarditis significantly upregulated genes related to antigen presentation, immune cell migration, and inflammatory pathways. Moreover, myeloid cells in the irAE group also exhibited upregulation of pathways associated with the inflammatory response and hypoxia, while demonstrating decreased activity of oxidative phosphorylation. The hypoxic environment in immune-related myocarditis induced by inflammatory interactions might prompt a metabolic switch from oxidative phosphorylation to glycolysis, thereby increasing the expression of M1 and pro-inflammatory patterns [44]. Within the microenvironment of immune-related myocarditis, antigen-presenting macrophages were the primary signaling sender of multiple inflammatory pathways, including CXCL, CCL, and TNF. Compared to normal heart tissues, antigen-presenting macrophages in the irAE group showed significantly enhanced interactions with T/NK cells, with enriched ligand-receptor pairs such as TNF–TNFRSF1B, CCL3–CCR1, and CCL3L1–CCR1. The CCL/CXCL pathways increase the recruitment of T/NK cells and the TNF–TNFRSF1B signaling pathway can induce the activation of T/NK cells [62, 63]. The heightened intercellular interactions between myeloid cells and T/NK cells increased the quantity and activity of immune cells infiltrating the heart tissue, indicating a markedly more inflammatory microenvironment of immune-related myocarditis. Targeting these enriched ligand-receptor interactions could serve as a promising therapeutic approach for attenuating immune-related myocarditis.

As stromal cells constitute a substantial proportion of heart tissues, it is also essential to explore their contributions to immune-related myocarditis. Within the compartment of endothelial cells, venous ECs specifically expressed ACKR1, which encodes an atypical receptor for CXC- and CC-chemokines. ACKR1 enables the transcytosis of chemokines to the luminal surfaces of endothelial cells, thereby recruiting the circulating leukocytes [59]. Moreover, the expression of ACKR1 receptors on endothelial cell surfaces can promote the transendothelial migration of lymphocytes and myeloid cells through the chemotactic action of CXC- and CC-chemokines [64]. The interactions between endothelial cells and immune cells through ACKR1 and CXC-chemokines have also been observed in other autoimmune or inflammatory diseases, such as Hashimoto’s thyroiditis [64], multiple sclerosis [65], interstitial cystitis [66], and inflammatory skin diseases [67], which highlights the significance of ACKR1 expression in inflammation. In our study, antigen-presenting macrophages, CD14 + monocytes, and CXCL9 + fibroblasts were identified as the primary sources of CXC-chemokines, while antigen-presenting macrophages were found to be the main producers of CC-chemokines. Inhibiting the interactions between these chemokines and ACKR1 might decrease immune cell recruitment to inflamed tissues, offering a potential therapeutic approach for immune-related myocarditis.

CXCL9 + fibroblasts were predominantly present in heart tissues affected by immune-related myocarditis. Consistently, a previous study also reported an expansion of CXCL10 + CCL19 + inflammatory fibroblasts in inflamed tissues compared to healthy tissues, across various diseases including rheumatoid arthritis, inflammatory bowel disease, interstitial lung disease, and Sjögren’s syndrome [68]. We explored the inflammatory characteristics of CXCL9 + fibroblasts and found that CXCL9 + fibroblasts showed enrichment in JAK-STAT and TNFα pathways and upregulated transcription factors related to MHC class II gene expression and interferon signaling pathways. Additionally, CXCL9 + fibroblasts exhibited high expression of various pro-inflammatory cytokines, including IFNG, PDGFD, IL1B, and TNFA. Moreover, CXCL9 + fibroblasts exhibited close interactions with venous ECs through CXCL2–ACKR1, CXCL8–ACKR1, CXCL9–ACKR1, CXCL10–ACKR1, CXCL11–ACKR1, and CCL2–ACKR1, facilitating the transcytosis of chemokines produced by CXCL9 + fibroblasts and the recruitment of circulating immune cells. These findings indicate the significant pro-inflammatory role of CXCL9 + fibroblasts in immune-related myocarditis, highlighting its potential as a therapeutic target.

Our analysis of murine scRNA-seq data validated the key findings in humans and further delineated the distinct inflammatory microenvironment of immune-related myocarditis compared to other myocarditis types. The strong concordance between mouse and human cardiac cell populations supported the utility of mouse models in studying myocarditis pathogenesis. In murine ICI-related myocarditis, lymphocytes exhibited higher levels of exhaustion signatures compared to controls and remained higher than those in other myocarditis types. Myeloid cell subsets exhibited the highest M1-like and pro-inflammatory signatures, further highlighting the distinct immunopathological features of this condition. Moreover, Cxcl9 + Cxcl10 + fibroblasts identified in murine hearts shared key biological characteristics with human CXCL9 + fibroblasts, with heightened activity in the JAK-STAT and TNFα pathways and the strongest outgoing signaling toward other cell types. This subset was most abundantly enriched in mouse ICI-related myocarditis, indicating its role as a key pathogenic population uniquely associated with immune-related myocarditis. Unlike in humans, ACKR1 expression was lacking in murine cardiac endothelial cells, in agreement with the review by Miranda et al. [41]. Nevertheless, endothelial cells in murine ICI-related myocarditis were still overall enriched for pathways associated with immune response regulation and immune cell chemotaxis, suggesting conserved features of immune-related myocarditis across species.

Several limitations of this study should be acknowledged. First, due to the invasive nature and limited diagnostic sensitivity, endomyocardial biopsy is rarely performed in clinical practice, which poses challenges in obtaining sufficient samples [69, 70]. Second, our analysis primarily focused on immune and stromal cells, while cardiomyocytes were not effectively captured owing to the technical constraints of droplet-based scRNA-seq platforms. Third, this study was limited to single-cell transcriptomic analysis and lacked integration with other omics approaches, such as spatial transcriptomics, proteomics, or epigenomics [71]. Future studies involving larger patient cohorts and multi-omics profiling are warranted to further explore microenvironmental differences among myocarditis subtypes and to identify potential therapeutic targets.

In summary, our single-cell analysis of immune-related myocarditis reveals distinct immune and stromal populations driving cardiac inflammation, offering insights into potential therapeutic strategies for this life-threatening irAE.

Data availability

The scRNA-seq data of the patient with immune-related myocarditis in this study are available upon reasonable request.
